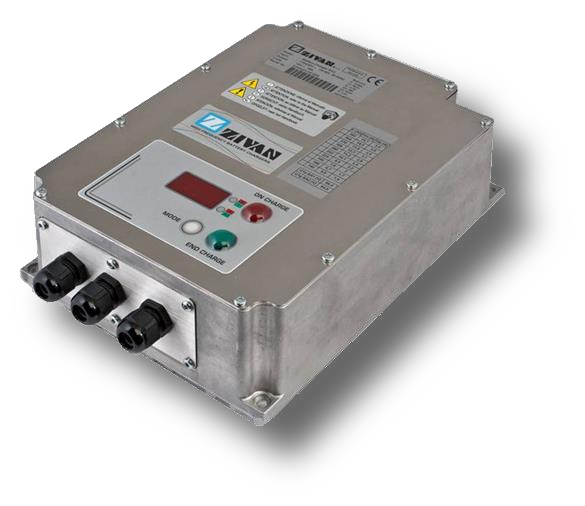

SG3 48V 60A

48V 60A output @ 115/230 VAC 16A Input Battery Charger

Brands
- Zivan
Series
- Zivan SG3
Industry
- Industrial
Volts
- 48 VDC
Amps
- 60 A

This combination does not exist.

Please Log in to see buy options.

The SG3 marks a new revolution of integrating an on-board charger to an electric vehicle platform. The active PFC filter is perfectly suited for applications around the world, accepting a supply voltage from 95 to 265 VAC. The innovative configuration of its heat sink, integrated into the rugged die-cast aluminum IP65 enclosure of the charger, allows for maximum flexibility of installation and extreme working conditions. The SG3 utilizes the latest generation flash microcontroller, which is necessary to handle the multitude of possible charging algorithms installed. The isolated CANBUS interface (2.0) enables integration of the unit into the system architecture of the vehicle. The abundant storage capacity is able to save up to 1K charging cycles, allowing for a complete analysis of the behavior of the battery and use over its lifetime. Last but not least, the SG3 is optimized to allow for high efficiency conversion from standard household sockets, allowing for the charging of all kinds of battery technologies.

Features

Galvanic Isolated CAN-BUS Interface
Inverse polarity protection (fuse)
Programmable charging curve
Thermal compensation of battery voltage (optional with external thermal sensor)
Programmable auxiliary contacts: main presence, charge in progress, end of charge
Clock Calendar
Data Logging
Delayed start
Parallelable
Vibration-proof structure
Die cast aluminium box, class IP65
Visualization by display of the parameters : Voltage, Current, charged Ah and Time

Volts	48 VDC
Amps	60 A
Power-Max	3 kW3kW
Efficiency	up to 93 %
Power Factor	0.98
Voltage-In	95 - 265 VAC
Frequency-In	50 - 60 Hz
Current-In	16 A16 A
Phase	Single Phase
Banks	1
