M-24V20-U1

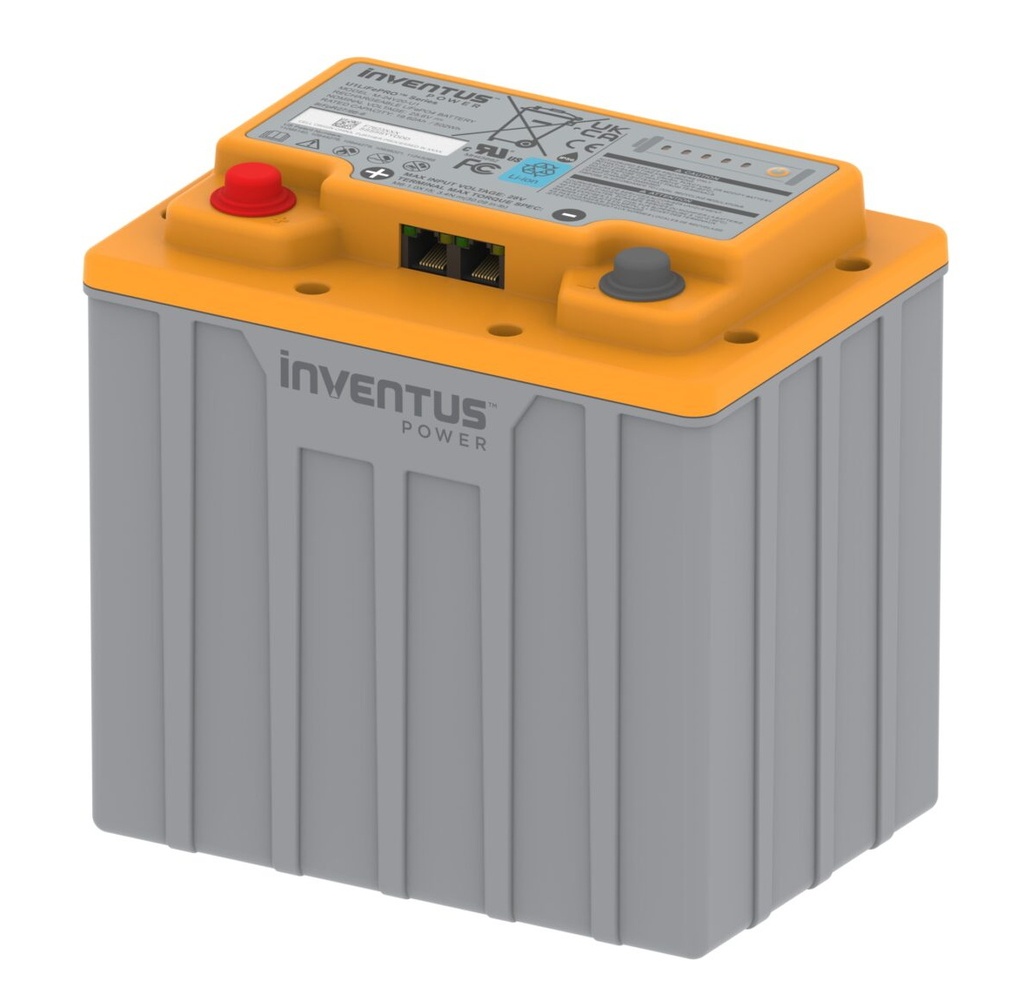

M-24V20-U1 U1LiFePRO® Lithium-ion Battery Pack
Please Log in to see buy options.
PROformance Series Lithium-ion Batteries
Intelligent, robust & high-performing battery solutions for motive applications
Advanced battery systems designed to work in the toughest and most demanding motive environments
Available in two models: M-version (standard) and S-version (terminals always active with no heater)
Advanced BMS with configurable software to optimize safety and performance
Operates down to -35°C with optional heater
Global certification (UL, TUV, etc.)
Modular to support various power requirements
Advanced balancing technology
Features
- Automotive grade cells from top tier manufacturers
- Fast charging within 3 hours
- Long shelf life performance with shutdown mode
- Scalable to increase runtime
- Automotive grade cells from top tier manufacturers
- Supports regenerative braking
- Soft start control (System pre-charge)
- Patented virtual BMS with Advanced Module Balancing Technology
- Universal Communication Protocol (CANopen/RS485)
- UL2054 Shock &
| Volts | 24 VDC |
| Capacity | 19.6 Ah |
| Terminal Config | M6 |
| Length | 34.8 cm |
| Width | 17.8 cm |
| Height | 26.0 cm |
- BCI Size U1
- Terminal Type (ISO) M6
- Terminal Torque (Nm) 3.4 ± 0.5 Nm
- Installation Orientation Horizontal / Vertical
- Ingress Protection Rating IP56
- Case Flammability Rating Flame Retardant UL94 V-0
- Medical Carts
- E-Mobility
- Material Handling
- Robotics
- UL1642 (Cell)
- UL2054 (Pack)
- IEC62133 (Cell/Pack)
- FCC Class B
- IEC60730 Class B
- UN/DOT 38.3
- ECE R100 / R10
