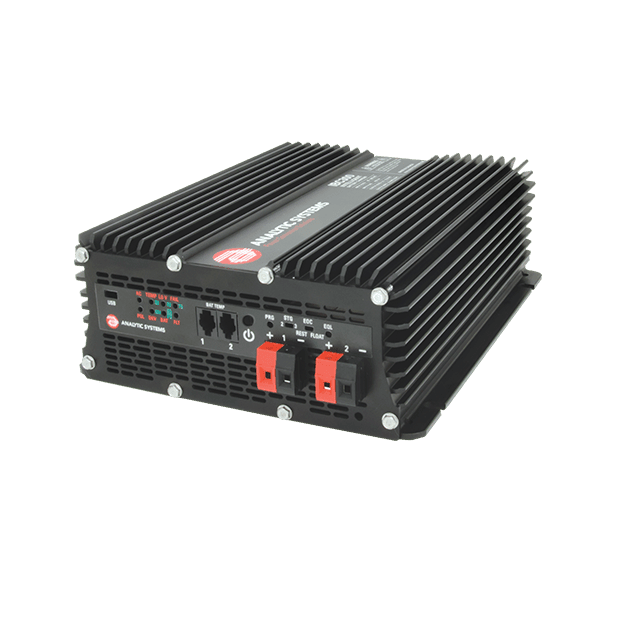

IBC320-48

5A, 48V Out, 85-265 VAC PFC In, AC/DC Battery Charger, 2 Bank

Brands
- Analytic Systems
Series
- IBC Digital Series
Industry
- Industrial
Volts
- 48 VDC
Amps
- 5 A

This combination does not exist.

Please Log in to see buy options.

The IBC series chargers are fully Digital Signal Processor controlled and feature Universal Input Voltage from 85 to 265 VAC at 50 or 60 Hz with Active Power Factor Correction for the most efficient use of AC power. Four charging profiles are available with easy front panel selection to handle most types of batteries from traditional Lead Acid, Sealed Lead Acid, and even Lithium Ion. The free to download ‘Power Wizard’ software allows full programming and selection of each of the four profiles from a laptop computer. 300 and 1000 Watt models are available for 1 or 2 banks of 12,24, 28, 32, 36 or 48 Volt batteries.

Features

Digital Signal Processor controlled
Computer programmable
Temperature compensation
Easy connection for one or two battery banks
Simple front panel controls
Digital Display of Voltage and Current (lengthens chassis)
High Vibration Rugged Duty
Dry Contact Output Fail Relay
Carrying Handle
Canbus / RS232 / Remote Control port
Five year parts and labour warranty

Volts	48 VDC
Amps	5 A
Power-Max	300 W
Efficiency	> 90 % at Full Load
Power Factor	> 0.99 at Full Load
Frequency-Switching	50 ± 5% kHz
Voltage-In	85 - 265 VAC
Frequency-In	45 - 65 Hz
Current-In	4 A with Inrush Protection
Phase	Single Phase
Banks	2
Stages	2 or 3 stage user selectable

Humidity	0 - 95% Relative Humidity (non-condensing) with standard conformal coating
Isolation In-Out	> 1500 VDC
Isolation In-Case	> 1500 VDC
Isolation Out-Case	> 1500 VDC
Fuse-In	5A
Length	24.1 cm
Width	20.3 cm
Height	8.3 cm

Material and Finish : Marine Grade Black Anodized Aluminum with 18-8 Stainless Fasteners
Mounting : Wall or Shelf Mount
Connections : Integrated Color Coded Terminal Blocks
