m85-33
2V 1360Ah Steel Module Flame Retardant Lead-Calcium Battery
Please Log in to see buy options.

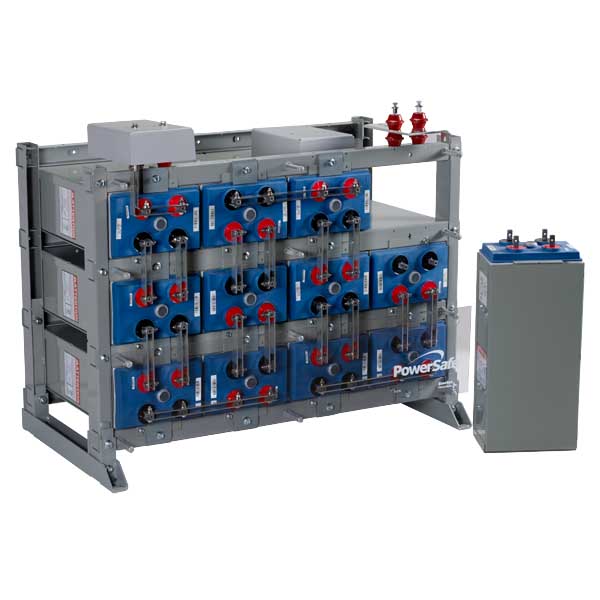

The PowerSafe® mSeries battery system offers an ideal solution for large capacity Valve Regulated Lead Acid (VRLA) battery requirements. The system’s steel can (module) design with its integral racking system, provides a cost effective battery system with a compact, quick and simple installation process.
The PowerSafe mSeries battery system’s cutting-edge technology incorporates an enhanced cell design with thicker positive plates for longer life. The welded/epoxy, dual post seal design provides the highest seal integrity in the industry.
Copper inserted square post design enhances the performance. The batteries are encased in dedicated protective steel cans (modules) that maintain constant, uniform compression for the life of the battery.
The racking system provides total flexibility for system configuration and allows fast, simple installation, while providing necessary robustness for NEBS™ requirements.
Features
- Capacity range 200 - 2000Ah
- Steel module design, cells factory installed in permanent steel modules with one or two cells per can
- Standard top termination – optional side termination
- Clear flame retardant safety shields allow for easy visual inspection without removal
- Inter-unit connectors and terminal plates : tin-plated copper, optional lead-plated copper available
- 2, 4 or 6 cells wide in 2-cell modules, 2, 3, 4 or 6 cells wide in single cell modules
| Volts | 2 VDC |
| Capacity | 1360 Ah |
| Capacity Rate | 15 min rate to 1.67 VPC @ 77°F (25°C) |
| Terminal Type | Terminal post – square lead-tin coated copper insert cross-drilled (0.25” holes) with large surface area, to provide maximum conductivity. |
| Terminal Config | Standard top termination – optional side termination |
| Fire Retardant | Yes |
| Length | 32.8 cm |
| Width | 57.7 cm |
| Height | 16.5 cm |
- Positive plate – thick 0.252” lead-calcium-tin grids minimize corrosion and prolong life
- Negative plate – balanced lead-calcium grids optimize recombination efficiency
- Absorbed Glass Mat (AGM) separator - mechanically strong, low electrical resistance, absorbed glass mat, which completely absorbs the electrolyte into its structure
- Container/cover - standard UL94 V-0 flame retardant polypropylene (LOI 28%)
- Terminal seal – ring burn with secondary epoxy resin seal is 100% water bath tested in the factory and proven in service
- Relief valve – operates at 2-3 psi and is complete with integral flame arrestor
- Separators
- Uninterruptible Power Supply
- Telecommunications
- Power Generation/Distribution
- Non-spillable classification (UN2800)
- Recognized by UL (UL standard 1989)
- Cell is NEBSTM certified
- The management systems governing the manufacture of this product are ISO 9001 : 2008 and ISO 14001
