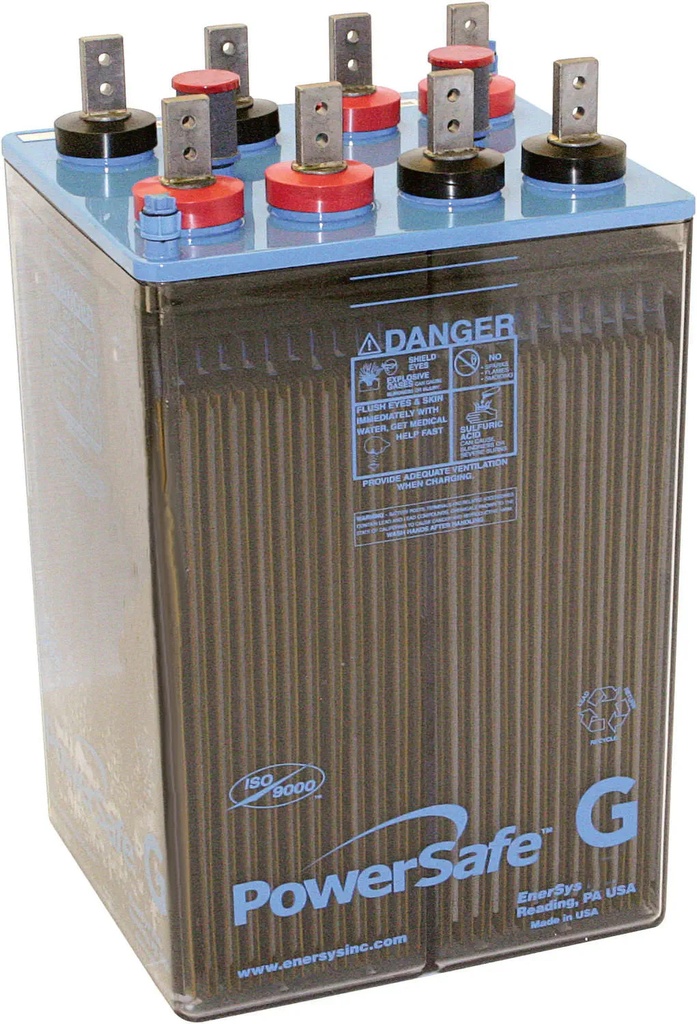

PowerSafe GN batteries feature a robust calcium flat plate design that can handle demanding, complex load profiles requiring high initial and end currents.
Built in accordance with a quality management system that encompasses 10CFR50 Appendix B and NQA-1 1994, the PowerSafe GN is
Class IE battery of choice for the resurgent nuclear market.
Features
- Capacity Range : 1140 – 3600Ah
- Flat plate, lead-calcium grid alloy, well suited for long duration float applications
- Proven Slide-Lock™ post seal design
- Positive and negative posts on each cell allow for monitoring of individual cells
- Standard UL94 V-0 flame retardant cover and container
- NEBSTM level 3 certified for systems with a nominal voltage under 80V
- Application: suitable for installation in network telecommunication facilities
- 20 year life expectancy in float service at 77ºF (25ºC) ambient temperature
- Operating temperature: 32ºF (0ºC) to 104ºF (40ºC)
- Recommended temperature: 68ºF (20ºC) to 86ºF (30ºC)
| Volts | 2 VDC |
| Capacity | 2520 Ah |
| Capacity Rate | 8 hr rate to 1.75 VPC @ 77°F (25°C) |
| Length | 31.5 cm |
| Width | 38.4 cm |
| Height | 69.1 cm |
- 0.25” thick positive plates provide long discharge rates and long life
- Lead plated copper posts - one positive and one negative post per cell
- Cover - standard PVC UL94 V-0 LOI>28%
- Container - standard PC UL94 V-0 LOI>28%
- Separator - microporous phenolic with “Vitrex” glass fiber retainers
- 1.215 specific gravity nominal at 77ºF (25ºC)
- Intercell connectors - lead-plated copper, optional tin-plated copper
- Flame arrestors - included for increased operational safety
- Proven Slide-Lock™ post seal design
- Switchgear
- Utility
- The management systems governing the manufacture of this product are ISO 9001:2008 and ISO 14001:2004 certified
PowerSafe GN Battery Range Summary
