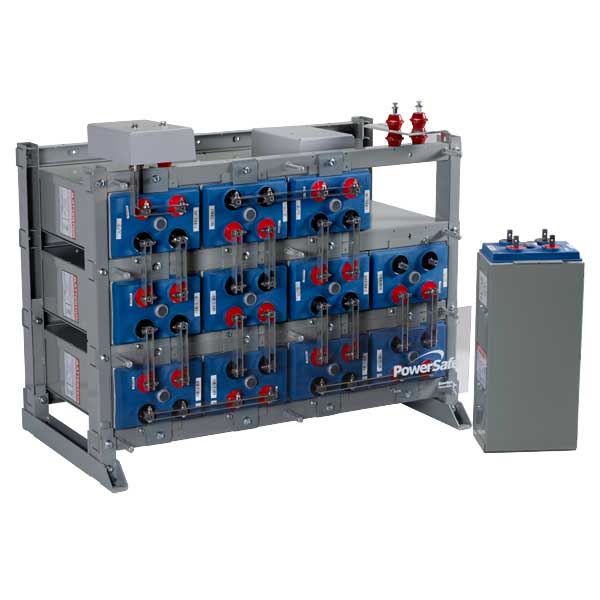

2DDm35-07

4V 105Ah Steel Module Flame Retardant Lead-Calcium Battery

Brands
- EnerSys
Series
- Powersafe DDm
Industry
- Technology
Volts
- 4 VDC
Capacity
- 105 Ah

This combination does not exist.

Please Log in to see buy options.

The PowerSafe® DDm battery range offers an ideal solution for large capacity Valve Regulated Lead Acid (VRLA) battery requirements. The PowerSafe DDm battery’s steel can (module) design, with its integral racking system, provides a cost effective battery system. This creates a compact, quick and simple installation process. The PowerSafe DDm battery system’s cutting-edge technology incorporates an enhanced cell design with a superior racking system. The enhanced cell incorporates thicker positive plates for longer life. The welded/epoxy, dual post seal design provides the highest integrity seal in the industry. The large copper post design also enhances the high rate performance. Cells are encased in dedicated protective steel cans (modules) that maintain constant, uniform compression for the life of the cell. The easy to assemble racking system provides total flexibility for system configuration and its built-in thermal management allows air flow between the cells, resulting in fast, effortless installation even in the most difficult locations. The PowerSafe DDm battery, with its optimized recombination technology and extra thick plates, provides excellent performance and service life for mission critical systems.

Features

Capacity range 105 - 2000Ah
Steel module design, cells factory installed in permanent steel modules with one or two cells per can
Standard top termination – optional side termination
Clear flame retardant safety shields allow for easy visual inspection without removal
Inter-unit connectors and terminal plates : tin-plated copper
Flexible module configuration – 2, 3, 4 or 6 cells wide in single cell modules

Volts	4 VDC
Capacity	105 Ah
Capacity Rate	8 hr rate to 1.75 VPC @ 77°F (25°C)
Terminal Type	Terminal post – square lead-tin coated copper insert cross-drilled (0.25” holes) with large surface area, to provide maximum conductivity.
Terminal Config	Standard top termination – optional side termination

Fire Retardant	Yes
Length	11.2 cm
Width	36.6 cm
Height	16.5 cm

Positive plate – thick 0.252” lead-calcium-tin grids minimize corrosion and prolong life
Negative plate – balanced lead-calcium grids optimize recombination efficiency
Absorbed Glass Mat (AGM) separator - mechanically strong, low electrical resistance, absorbed glass mat, which completely absorbs the electrolyte into its structure
Container/cover - standard UL94 V-0 flame retardant polypropylene (LOI 28%)
Terminal seal – ring burn with secondary epoxy resin seal is 100% water bath tested in the factory and proven in service
Relief valve – operates at 2-3 psi and is complete with integral flame arrestor
Separators

Uninterruptible Power Supply
Telecommunications
Power Generation/Distribution

Non-spillable classification (UN2800)
Recognized by UL (UL standard 1989)
Cell is NEBSTM certified
The management systems governing the manufacture of this product are ISO 9001 : 2008 and ISO 14001
