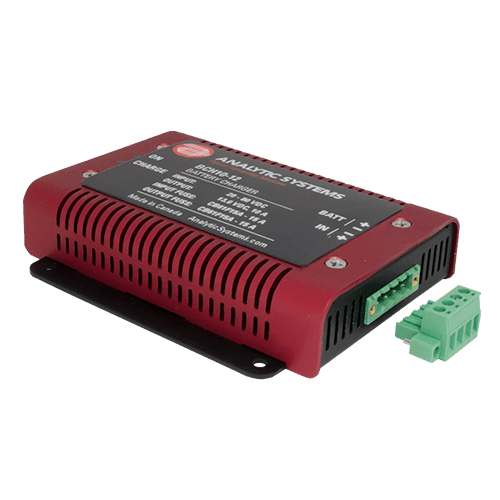

BCH10-12

10A, 12V Out, 20-80V In, Non-Iso, DC/DC Battery Charger

Brands
- Analytic Systems
Series
- BCH Analog Series
Industry
- Industrial
Volts
- 12 VDC
Amps
- 10 A

This combination does not exist.

Please Log in to see buy options.

The BCH10 Step Down series of Battery Chargers supply up to 10 amps of charging current at 12, 24, 36 or 48 volts from any higher voltage between 20 and 80 volts DC for use in automotive, heavy equipment, marine, industrial, rail or alternative energy environments. The output voltage is configured to allow permanent connection to the battery. All surface mount high frequency design offers higher reliability, higher efficiency (more than 91%), more power (up to 544 watts at 48 VDC Out) and minimum size. The unit has reverse input protection, reverse battery connection protection, and output over-voltage protection and features spark free connection to the battery. Smart Ideal Diode output circuitry prevents any reverse current flowing from the battery back into the converter.

Features

up to 544 watts at 48 VDC Out
Temperature compensation
Manual equalization mode
Low EMI
Adjustable float voltage
Three year parts and labour warranty
Typical Service Life : > 10 years (87,600 hrs)

Volts	12 VDC
Amps	10 A
Power-Max	120 W
Efficiency	> 75 % at Full Load
Voltage-In	20 - 80 VDC
Current-In	20 A
Phase	Single Phase
Banks	1
Stages	2 or 3 stage user selectable

Humidity	0 - 95% Relative Humidity (non-condensing) with standard conformal coating
Isolation In-Out	> 1500 VDC
Isolation In-Case	> 1500 VDC
Isolation Out-Case	> 1500 VDC
Fuse-In	AGC 25
Fuse-Out	AGC 30 x2
Length	12.3 cm
Width	10.5 cm
Height	2.6 cm
