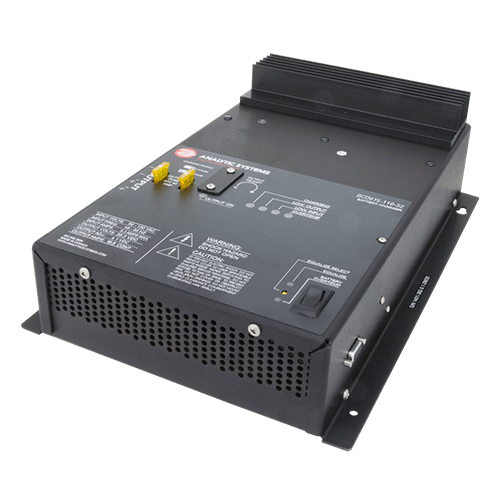

BCD615-72-48

10A, 48V Out, 65-90V In, Iso DC/DC Battery Charger, 2 Bank

Brands
- Analytic Systems
Series
- BCD Analog Series
Industry
- Industrial
Volts
- 48 VDC
Amps
- 10 A

This combination does not exist.

Please Log in to see buy options.

Isolated BCD series chargers feature precision charging voltages for 1, 2 or 3 banks of batteries at 12, 24, 32, 36, 48 or 72(rail) volts DC. Models are available to operate from input voltages as low as 10 VDC and up to 400 VDC at power levels from 300 to 1500 watts. All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated battery equalization for optimum charging and maximum battery life. Full isolation allows different ground levels to be accommodated (i.e. Charging a positive ground battery from a negative ground source or vice-versa).

Features

600 watts of charging power
Two or three bank charging
Temperature compensation
Manual equalization mode
1, 2 or 3 bank charging
Low EMI
Adjustable float voltage
Three year parts and labour warranty
Typical Service Life : > 10 years (87,600 hrs)

Volts	48 VDC
Amps	10 A
Power-Max	600 W
Efficiency	> 75 % at Full Load
Voltage-In	65 - 90 VDC
Current-In	12.1 A
Phase	Single Phase
Banks	2
Stages	2 or 3 stage user selectable

Humidity	0 - 95% Relative Humidity (non-condensing) with standard conformal coating
Isolation In-Out	> 1500 VDC
Isolation In-Case	> 1500 VDC
Isolation Out-Case	> 1500 VDC
Fuse-In	ATC 25 x1
Fuse-Out	ATC 15 x2
Length	36.8 cm
Width	25.1 cm
Height	12.7 cm

Material and Finish : Marine Grade Black Anodized Aluminum with 18-8 Stainless Fasteners
Wall Mount (With Drip Shield)
Connections : AC Input - IEC Inlet 26.4mm Tab Flange Mount, DC Output - Phoenix VDFK 4 Connector (Black and Red)
