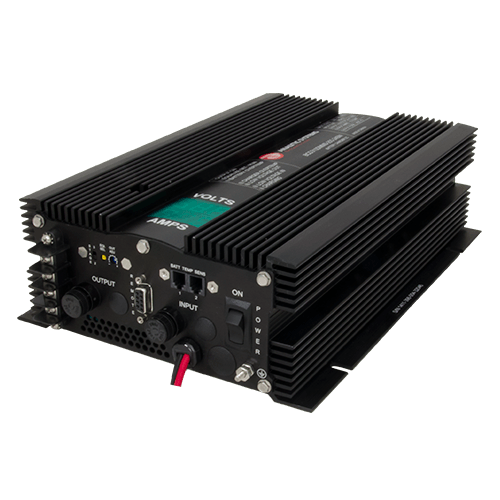

BCD310-300-48

5A, 48V Out, 280-360V In, Iso DC/DC Battery Charger, 3 Bank

Brands
- Analytic Systems
Series
- BCD Analog Series
Industry
- Industrial
Volts
- 48 VDC
Amps
- 5 A

This combination does not exist.

Please Log in to see buy options.

The traditional BCD310 series chargers feature 300 watts of precision charging power for 1, 2 or 3 banks of batteries at 12, 24, 32, 36, 48 or 72(rail) volts DC. Models are available to operate from 110, 250 or 300 volts DC. All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life.

Features

300 watts of charging power
Two or three bank charging
Temperature compensation
Manual equalization mode
1, 2 or 3 bank charging
Low EMI
Adjustable float voltage
Three year parts and labour warranty
Typical Service Life : > 10 years (87,600 hrs)

Volts	48 VDC
Amps	5 A
Efficiency	> 75 % at Full Load
Voltage-In	280 - 360 VDC
Current-In	1.4 A
Phase	Single Phase
Banks	3
Stages	2 or 3 stage user selectable

Humidity	0 - 95% Relative Humidity (non-condensing) with standard conformal coating
Isolation In-Out	> 1500 VDC
Isolation In-Case	> 1500 VDC
Isolation Out-Case	> 1500 VDC
Fuse-In	MDA-2
Fuse-Out	AGC 10
Length	24.4 cm
Width	20.8 cm
Height	8.9 cm
