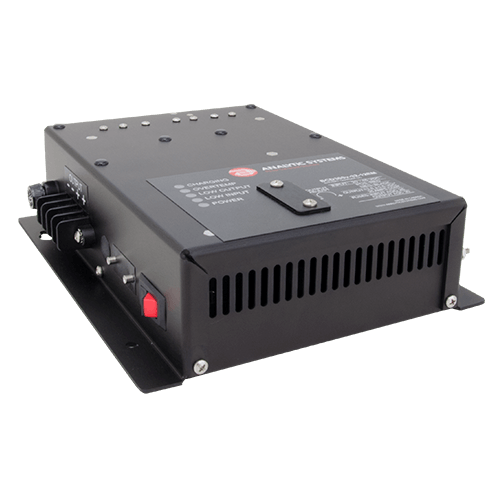

BCD300-32-12

25A, 12V Out, 20-45V In, Non-Iso DC/DC Battery Charger, 2 Bank

Brands
- Analytic Systems
Series
- BCD Analog Series
Industry
- Industrial
Volts
- 12 VDC
Amps
- 25 A

This combination does not exist.

Please Log in to see buy options.

The BCD300 battery charger outputs up to 300 watts to charge a 12V or 24V battery system (1 or 2 banks) from any higher voltage between 20 and 45 volts. The source and the batteries under charge must share a common ground. Multiple stages of filtering reduce radiated or conducted noise to very low levels. The two stage charging profile charges the batteries at a constant current until the battery voltage reaches the float voltage that the unit is set to and then the current into the batteries will taper off as necessary to maintain the batteries at the float voltage. The unit can be left permanently connected without fear of overcharge or damage to the batteries. The adjustable float voltage feature allows the unit to be used for any type of lead-acid battery including lead acid and gel cell.

Features

300 watts of charging power
Two or three bank charging
Temperature compensation
Manual equalization mode
1 or 2 bank charging
Low EMI
Adjustable float voltage
Three year parts and labour warranty
Typical Service Life : > 10 years (87,600 hrs)

Volts	12 VDC
Amps	25 A
Efficiency	> 75 % at Full Load
Voltage-In	20 - 45 VDC
Current-In	20 A
Phase	Single Phase
Banks	2
Stages	2 or 3 stage user selectable

Humidity	0 - 95% Relative Humidity (non-condensing) with standard conformal coating
Isolation In-Out	> 1500 VDC
Isolation In-Case	> 1500 VDC
Isolation Out-Case	> 1500 VDC
Fuse-In	AGC 25
Fuse-Out	AGC 30 x2
Length	23.1 cm
Width	19.8 cm
Height	6.4 cm
