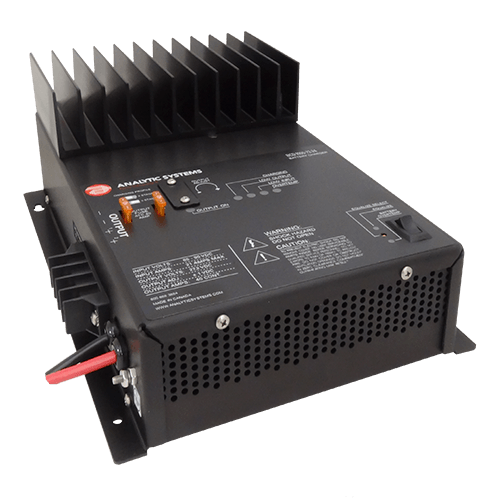

BCD1000-110-12

60A, 12V Out, 100-140V In, Iso DC/DC Battery Charger, 2 Bank

Brands
- Analytic Systems
Series
- BCD Analog Series
Industry
- Industrial
Volts
- 12 VDC
Amps
- 60 A

This combination does not exist.

Please Log in to see buy options.

The model BCD1000 Battery Charger charges either 12V, 24V or 48V batteries from a 110, 220 or 300VDC power source. Other battery voltages up to 72 volts are also available by special order. The all-new Current Mode switching design offers increased power and reliability in a compact package. Extra input and output filtering reduce EMI to extremely low levels. Reliability features include an input fuse, thermal shutdown, current limiting, reverse battery hookup protection, output short circuit shutdown with automatic recovery and an equalize charge mode. The output voltage is easily adjusted 1.0 volts above or below the standard output voltage to accommodate special charging requirements.

Features

1000 watts of charging power
Two or three bank charging
Temperature compensation
Manual equalization mode
1, 2 or 3 bank charging
Low EMI
Adjustable float voltage
Three year parts and labour warranty
Typical Service Life : > 10 years (87,600 hrs)

Volts	12 VDC
Amps	60 A
Power-Max	1 kW
Efficiency	> 80 % at Full Load
Voltage-In	100 - 140 VDC
Current-In	14.8 A
Phase	Single Phase
Banks	2
Stages	2 or 3 stage user selectable

Humidity	0 - 95% Relative Humidity (non-condensing) with standard conformal coating
Isolation In-Out	> 1500 VDC
Isolation In-Case	> 1500 VDC
Isolation Out-Case	> 1500 VDC
Fuse-In	MDA-15
Fuse-Out	ATC 40 x2
Length	36.8 cm
Width	25.1 cm
Height	14.0 cm

Material and Finish : Marine Grade Black Anodized Aluminum with 18-8 Stainless Fasteners
Four contact output terminals
