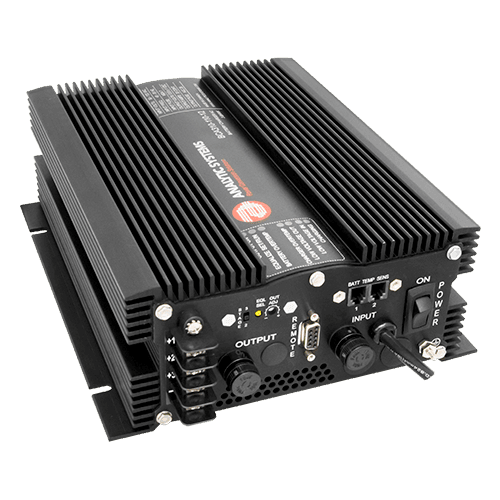

BCA310-110-24

10A, 24V Out, 110VAC In, AC/DC Battery Charger, 3

Brands
- Analytic Systems
Series
- BCA Analog Series
Industry
- Industrial
Volts
- 24 VDC
Amps
- 10 A

This combination does not exist.

Please Log in to see buy options.

The traditional BCA310 series chargers feature 300 watts of precision charging power for 1, 2 or 3s of batteries at 12, 24, 32, 36, 48 or 72(rail) volts DC. Models are available to operate from 110 or 220 volts AC at 50, 60 or 400 Hz. All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life

Features

150 watts of charging power
Two or three charging
Temperature compensation
Manual equalization mode
Two or three stage charging profiles
Low EMI
Adjustable float voltage
Three year parts and labour warranty
Typical Service Life : > 10 years (87,600 hrs)

Volts	24 VDC
Amps	20 A
Power-Max	600 W
Efficiency	> 90 % at Full Load
Power Factor	> 0.98 at Full Load
Frequency-Switching	50 ± 5% kHz
Voltage-In	90 - 130 VAC
Frequency-In	45 - 65 Hz
Current-In	3 A with Inrush Protection
Phase	Single Phase
Banks	2
Stages	2 or 3 stage user selectable

Temp-Operating	-25°C to +40°C @ maximum output. Derate Linearly 2.5% per °C from 40°C
Humidity	0 - 95% Relative Humidity (non-condensing) with standard conformal coating
Isolation In-Out	> 1500 VDC
Isolation In-Case	> 1500 VDC
Isolation Out-Case	> 1500 VDC
Fuse-Out	AGC-25
Length	36.8 cm
Width	25.1 cm
Height	14.0 cm

Material and Finish : Marine Grade Black Anodized Aluminum with 18-8 Stainless Fasteners
Wall Mount (With Drip Shield)
Connections : AC Input - IEC Inlet 26.4mm Tab Flange Mount, DC Output - Phoenix VDFK 4 Connector (Black and Red)
