BCA1050MPVW-24DND

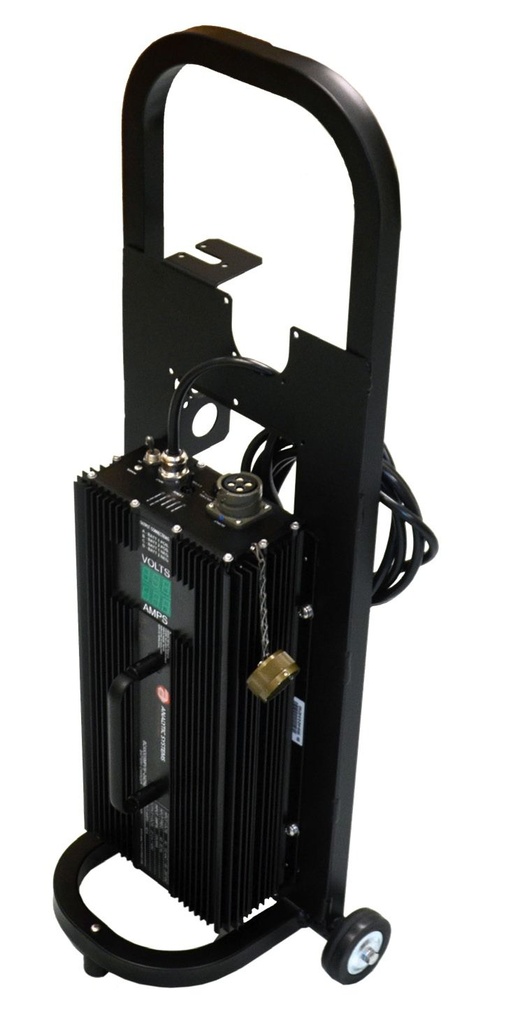

40A, 24V Waterproof Shop Battery Charger With NATO Connector, Mounted on Anodized Aluminum Rolling Cart NSN: 6130-20-014-0080

Brands
- Analytic Systems
Series
- BCA Analog Series
Industry
- Defense
Volts
- 24 VDC
Amps
- 40 A

This combination does not exist.

Please Log in to see buy options.

Ask a Question

Terms and Conditions

This model is a variant of Analytic Systems’ proven 1000-watt military grade BCA1050 1000-watt battery charger, designed specifically for the Canadian Department of National Defense (DND). It consists of the military version of the BCA1050-24 charger enhanced with the Portable and Digital Volt/Ammeter options in an IP66 rated water resistant black anodized extruded aluminum enclosure with billet machined aluminum end plates and stainless-steel fasteners. The charger features a power factor corrected input stage for efficient operation compatible with any single-phase AC source voltage from 85 to 264 VAC at either 50 or 60 Hz and is provided with a 3-meter NEMA 5-15 power cord. Other plugs can be fitted to the power cord to connect to any source of AC power within the specified range. The charger can simultaneously charge one or twos of 24-volt batteries that share a common ground. When fitted with one or two battery temperature sensors the charging voltage will compensate for battery temperature. Reverse polarity protection is standard with LED indication of improper battery connection. Additional indicator LEDs and an alarm buzzer to alert the user to other fault conditions. The digital volt/ammeter can display the voltage and current for either battery or both combined as well as a dark mode, selectable by waterproof pushbutton. A rugged portable cart is included that the charger can be easily mounted or unmounted from as well as a custom 2.5-meter charging cable terminated in a standard NATO Slave Connector with an integrated battery temperature sensor on the vehicle end and power and temperature connectors on the charger end. The cart includes storage brackets for both the input and output cables for convenience. The charger is calibrated to charge a standard 24V lead acid battery in either 3-Stage or 2-Stage profiles. In 2-Stage operating mode it also can be used as a power supply without a battery. An internal output voltage adjustment is provided to allow qualified personnel to adjust the charger output to suit other battery chemistries.

Features

1000 watts of charging power
IP66 rated - waterproof
Temperature compensation
NATO connector cable included
Two or three stage charging profiles
Low EMI
Adjustable float voltage
Two year parts and labour warranty
Typical Service Life : > 10 years (87,600 hrs)

Volts	12 VDC
Amps	20 A
Power-Max	300 W
Efficiency	> 90 % at Full Load
Power Factor	> 0.99 at Full Load
Frequency-Switching	50 ± 5% kHz
Voltage-In	85 - 265 VAC
Frequency-In	45 - 65 Hz
Current-In	4 A with Inrush Protection
Phase	Single Phase
Banks	2
Stages	2 or 3 stage user selectable

Humidity	0 - 95% Relative Humidity (non-condensing) with standard conformal coating
Isolation In-Out	> 1500 VDC
Isolation In-Case	> 1500 VDC
Isolation Out-Case	> 1500 VDC
Fuse-In	5A
Length	24.1 cm
Width	20.3 cm
Height	8.3 cm

Material & Finish : Extruded aluminum chassis and bottom cover, billet machined aluminum endplates with O-ring seals, all black anodized
Fasteners : 18-8 Stainless steel
Input Connection: 3 m / 9.8ft 3xAWG14 power cord with NEMA 5-15 compatible plug
Output Connection: Amphenol GTC02R22-22S-RDS 4-hole MIL-Spec connector
Temperature Connection: Amphenol PT07-8-4S 4-position Circular MIL-Spec connector
